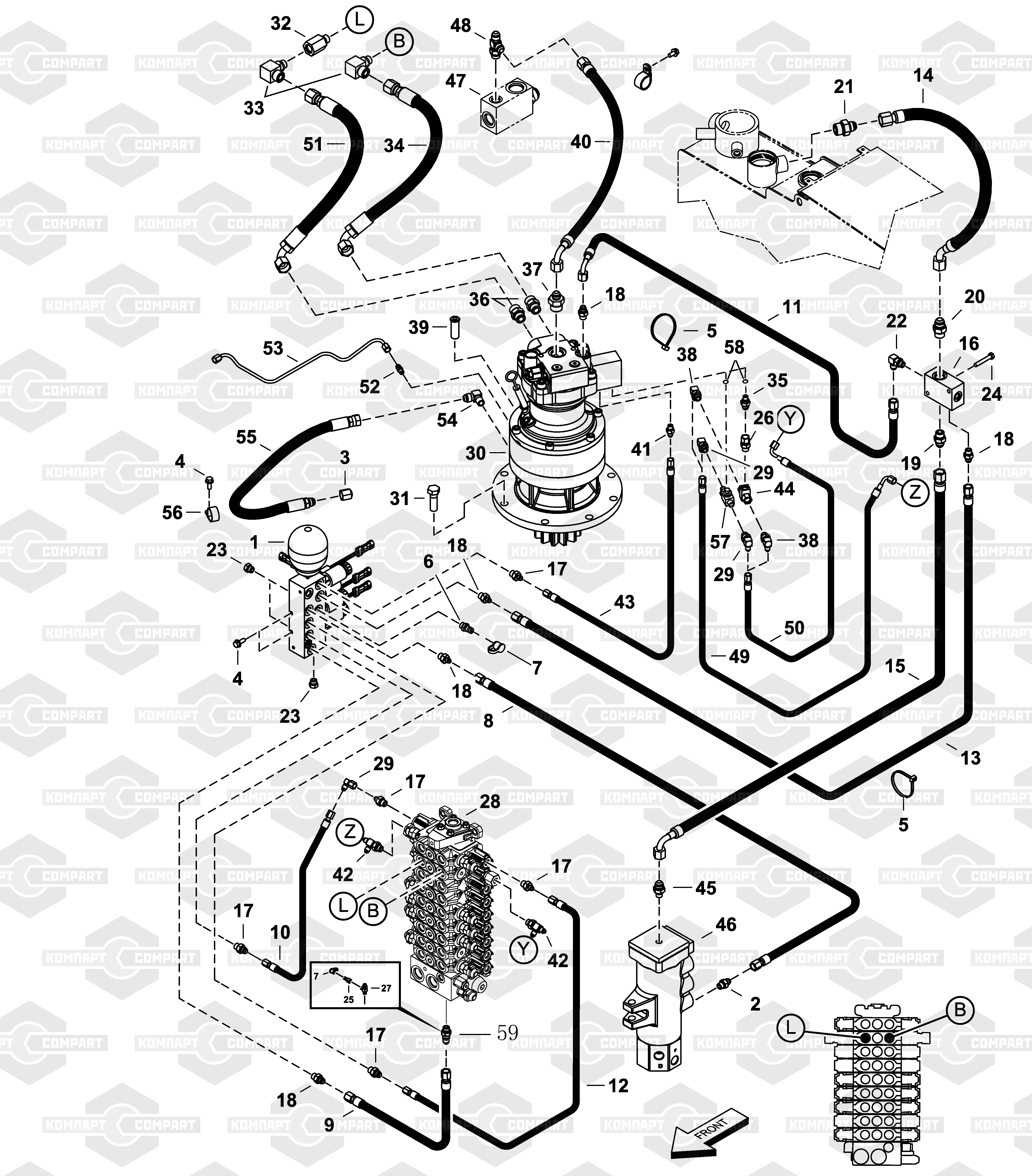

2 клика - переход в карточку товара, 1 клик - выбор запчасти на схеме

Поз.	Кат. номер	Наименование	Кол.
1	6685162 S/N:	MANIFOLD	-
2	18KB0606 S/N:	ELBOW	-
2	79K6 S/N:	MOUNT, PEDAL	-
3	36K6 S/N:	CAP	-
4	29CM820 S/N:	.	-
5	6624289 S/N:	CABLE TIES	-
6	6630168 S/N:	COUPLER	-
7	6630367 S/N:	SPRING	-
8	7151319 S/N:	HOSE ASSY	-
9	7151320 S/N:	HOSE ASSY	-
10	7151321 S/N:	HOSE ASSY	-
11	7151322 S/N:	HOSE ASSY	-
12	7151323 S/N:	HOSE ASSY	-
13	7151324 S/N:	HOSE ASSY	-
14	7151325 S/N:	HOSE ASSY	-
15	7151326 S/N:	HOSE ASSY	-
16	7151329 S/N:	JOINT,HOSE	-
17	79K6 S/N:	MOUNT, PEDAL	-
17	15KB0406 S/N:	MOUNT, PEDAL	-
18	15KB0606 S/N:	MOUNT, PEDAL	-
18	79K6 S/N:	MOUNT, PEDAL	-
19	15KB0808 S/N:	ADAPTER	-
19	79K8 S/N:	MOUNT, PEDAL	-
20	15KB1010 S/N:	FITTING	-
20	79K10 S/N:	O RING 10	-
21	79K12 S/N:	SUPPORT	-
21	15KB1012 S/N:	ADAPTER	-
22	79K6 S/N:	MOUNT, PEDAL	-
22	17KB0606 S/N:	MOUNT, PEDAL	-
23	79K6 S/N:	MOUNT, PEDAL	-
23	24K5 S/N:	SPRING	-
24	7CM850 S/N:	SCREW,HEX HEAD	-
25	6661753 S/N: 11001 - 11274	PLUG	-
26	7174192 S/N: 11001 - 11279	ADAPTER	-
26	79K6 S/N: 11001 - 11279	MOUNT, PEDAL	-
27	79K6 S/N: 11001 - 11274	MOUNT, PEDAL	-
27	21KB0606 S/N: 11001 - 11274	TEE	-
28	7177337 S/N: 11276 ~	VALVE,MAIN CONTROL	-
28	7149552 S/N: 11001 - 11275	VALVE,MAIN	-
29	11K3 S/N: 11001 - 11275	ELBOW	-
30	7176589 S/N: 11001 - 11275	MOTOR,SWING	-
31	7CM1650 S/N: 11001 - 11275	BOLT	-
32	7151288 S/N: 11001 - 11275	FITTING	-
32	79K8 S/N: 11001 - 11275	MOUNT, PEDAL	-
33	42E1008 S/N: 11001 - 11275	FITTING	-
33	79K8 S/N: 11001 - 11275	MOUNT, PEDAL	-
34	7173558 S/N: 11001 - 11275	HOSE ASSY	-
35	15KB0604 S/N: 11001 - 11279	ADAPTER	-
35	79K4 S/N: 11001 - 11279	MOUNT, PEDAL	-
36	41E1010 S/N: 11001 - 11279	ADAPTER	-
36	79K10 S/N: 11001 - 11279	O RING 10	-
37	15KB0812 S/N: 11001 - 11279	CONNECTER	-
37	79K12 S/N: 11001 - 11279	SUPPORT	-
38	79K4 S/N: 11001 - 11279	MOUNT, PEDAL	-
38	17KB0406 S/N: 11001 - 11279	MOUNT, PEDAL	-
39	7176180 S/N: 11001 - 11279	DOWEL, MOTOR	-
40	7151359 S/N: 11001 - 11279	HOSE ASSY	-
41	79K4 S/N: 11001 - 11279	MOUNT, PEDAL	-
41	15KB0404 S/N: 11001 - 11279	MOUNT, PEDAL	-
42	79K6 S/N: 11001 - 11279	MOUNT, PEDAL	-
42	21KB0406 S/N: 11001 - 11279	TEE	-
43	7151358 S/N: 11001 - 11279	HOSE ASSY	-
44	7174191 S/N: 11001 - 11279	VALVE,SHUTTLE	-
45	15KB0806 S/N: 11001 - 11279	CONNECTER	-
45	79K6 S/N: 11001 - 11279	MOUNT, PEDAL	-
46	7149557 S/N: 11001 - 11279	SWIVEL ASSY	-
47	6681586 S/N: 11001 - 11279	VALVE	-
48	79K8 S/N: 11001 - 11279	MOUNT, PEDAL	-
48	21KB0808 S/N: 11001 - 11279	TEE	-
49	7174160 S/N: 11001 - 11279	HOSE ASSY	-
50	7174161 S/N: 11001 - 11279	HOSE ASSY	-
51	7176183 S/N: 11001 - 11279	HOSE ASSY	-
52	7175420 S/N: 11001 - 11279	ADAPTER	-
53	7176181 S/N: 11001 - 11279	TUBE ASSY	-
54	7175421 S/N: 11001 - 11279	ELBOW	-
55	7175720 S/N: 11001 - 11279	HOSE ASSY	-
56	30H57 S/N: 11001 - 11279	CLAMP	-
57	7179386 S/N: 11280 ~	VALVE,SHUTTLE	-
58	79K4 S/N: 11280 ~	MOUNT, PEDAL	-
59	15KB0606 S/N: 11275 ~	MOUNT, PEDAL	-
