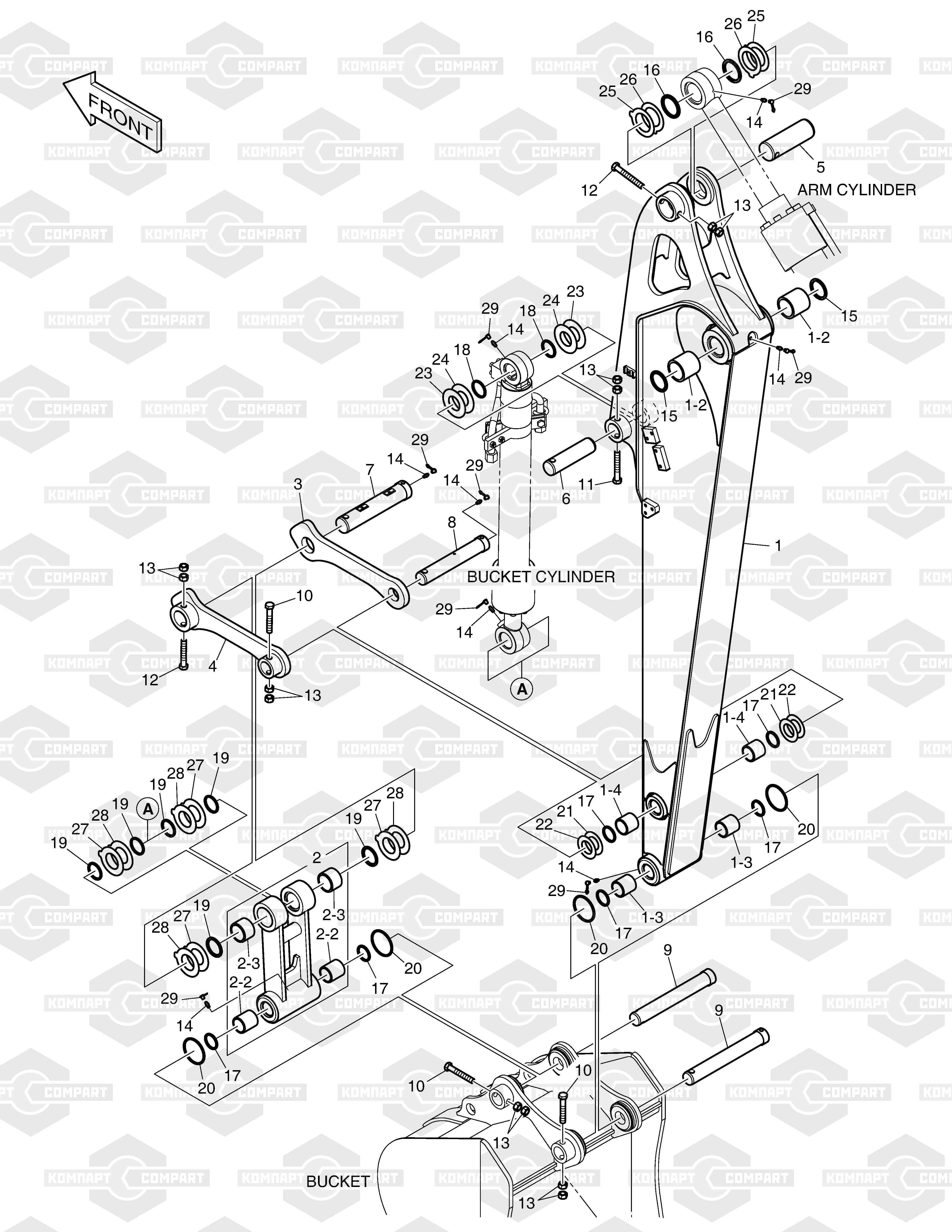

2 клика - переход в карточку товара, 1 клик - выбор запчасти на схеме
| Поз. | Кат. номер | Наименование | Кол. | Наличие | В запрос |
|---|---|---|---|---|---|
| - |
230201-00470
S/N:
|
ARM ASSY | - |
|
|
| 1 |
230204-00182B
S/N:
|
ARM,MACHINE;(2.25M) | - |
|
|
| 1-2 |
131008-00102
S/N:
|
BUSHING | - |
|
|
| 1-3 |
131008-00115
S/N:
|
BUSHING | - |
|
|
| 1-4 |
131008-00113
S/N:
|
BUSHING | 2 |
|
|
| 2 |
101541-00093
S/N:
|
LINK,PUSH | - |
|
|
| 2-2 |
131008-00115
S/N:
|
BUSHING | - |
|
|
| 2-3 |
131008-00116
S/N:
|
BUSHING | - |
|
|
| 3 |
155-00044
S/N:
|
LINK;GUIDE(R.H.) | - |
|
|
| 4 |
155-00045
S/N:
|
LINK;GUIDE(L.H.) | - |
|
|
| 5 |
120501-01035
S/N:
|
PIN | - |
|
|
| 6 |
120501-01250
S/N:
|
PIN;BUCKET CYL HEAD | - |
|
|
| 7 |
120501-01130A
S/N: 1039 ~
|
PIN;BUCKET CYL ROD | - |
|
|
| 7 |
120501-01130
120501-01130A
S/N: 1001 - 1038
|
PIN | - |
|
|
| 8 |
120501-01129
S/N: 1001 - 1038
|
PIN | 1 |
|
|
| 9 |
120501-00325
S/N: 1001 - 1038
|
PIN | 2 |
|
|
| 10 |
S0566266
S/N: 1001 - 1038
|
BOLT | - |
|
|
| 11 |
S0566466
S/N: 1001 - 1038
|
BOLT M16X2.0X110 | - |
|
|
| 12 |
S0566666
S/N: 1001 - 1038
|
BOLT | 2 |
|
|
| 13 |
S4012933
S/N: 1001 - 1038
|
NUT | 12 |
|
|
| 14 |
S6710041
S/N: 1001 - 1038
|
NIPPLE,GREASE | 8 |
|
|
| 15 |
DS5502009
S/N: 1001 - 1038
|
SEAL,DUST | - |
|
|
| 16 |
DS5502003
S/N: 1001 - 1038
|
SEAL,DUST | 2 |
|
|
| 17 |
DS5502011
S/N: 1001 - 1038
|
SEAL,DUST | 6 |
|
|
| 18 |
DS5502012
S/N: 1001 - 1038
|
SEAL,DUST | 2 |
|
|
| 19 |
DS5502016
S/N: 1001 - 1038
|
SEAL,DUST | 6 |
|
|
| 20 |
DS2855001
S/N: 1076 ~
|
RING,O | 4 |
|
|
| 20 |
180-00077D1
DS2855001
S/N: 1001 - 1075
|
O-RING | 4 |
|
|
| 21 |
DS7752081
S/N: 1001 - 1075
|
SHIM | 2 |
|
|
| 22 |
DS7752082
S/N: 1001 - 1075
|
SHIM | 2 |
|
|
| 23 |
DS7752083
S/N: 1001 - 1075
|
SHIM | 2 |
|
|
| 24 |
DS7752084
S/N: 1001 - 1075
|
SHIM | 2 |
|
|
| 25 |
DS7752099
S/N: 1001 - 1075
|
SHIM 1.0t | 2 |
|
|
| 26 |
DS7752100
S/N: 1001 - 1075
|
SHIM 1.6t | 2 |
|
|
| 27 |
DS7752104
S/N: 1001 - 1075
|
SHIM 1.0t | 4 |
|
|
| 28 |
DS7752105
S/N: 1001 - 1075
|
SHIM 1.6t | 4 |
|
|
| 29 |
160-00020
S/N: 1001 - 1075
|
CAP | 8 |
|
|
