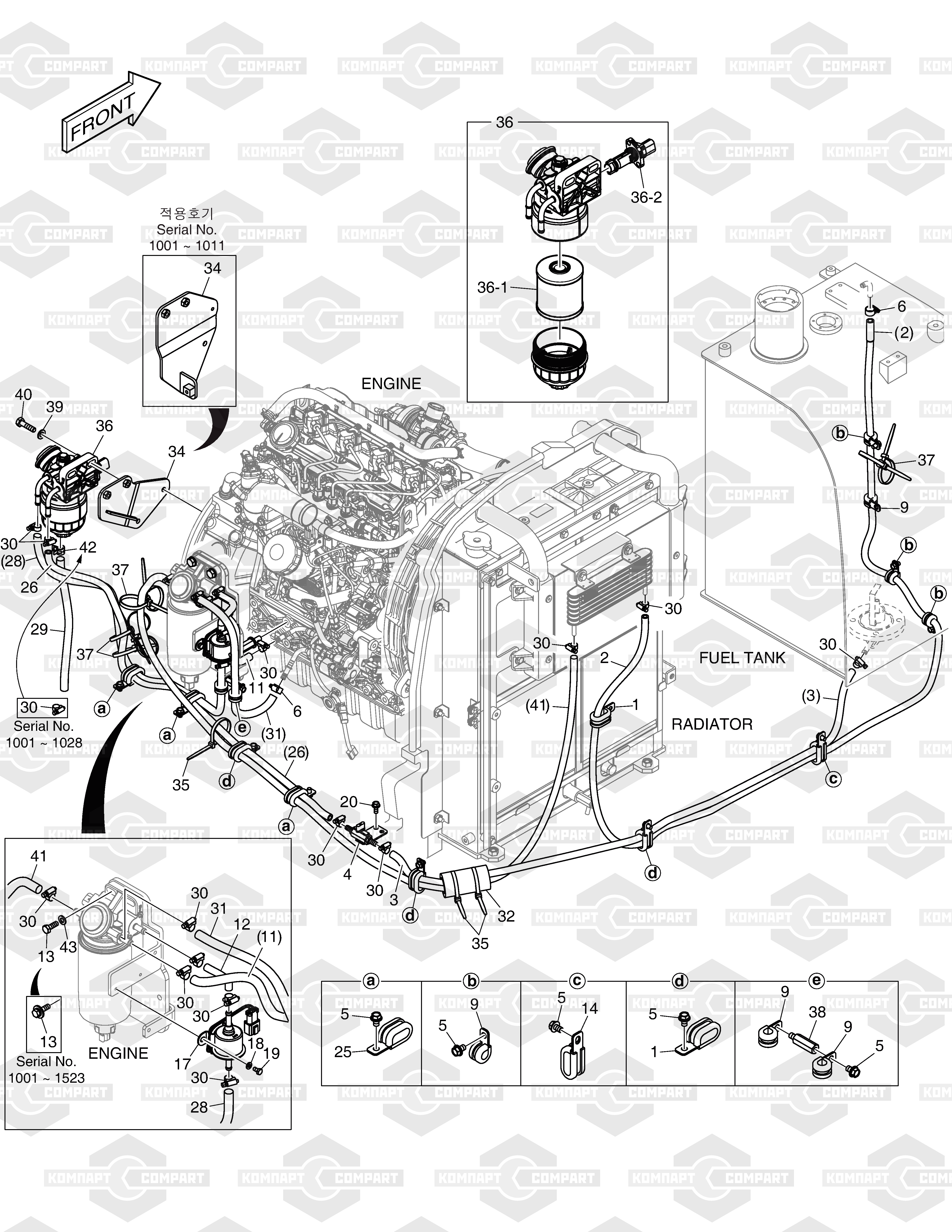

| Поз. | Кат. номер | Наименование | Кол. | Наличие | В запрос |
|---|---|---|---|---|---|
| - |
420212-10684
S/N:
|
PIPING,FUEL | - |
|
|
| 1 |
124-00209D1
S/N:
|
CLIP | 4 |
|
|
| 2 |
420103-00260A
S/N:
|
HOSE | - |
|
|
| 3 |
DS2117022
S/N:
|
HOSE | - |
|
|
| 36-1 |
400508-00101
S/N:
|
CARTRIDGE,FUEL FILTER | - |
|
|
| 36-2 |
440207-00509
S/N:
|
HEATER,FUEL | - |
|
|
| 4 |
410202-00038
S/N:
|
COCK,VALVE | - |
|
|
| 5 |
K1001029
S/N:
|
BOLT | 11 |
|
|
| 6 |
S8470020
S/N:
|
CLAMP | - |
|
|
| 9 |
124-00208D2
S/N:
|
CLAMP | 6 |
|
|
| 11 |
420103-00282
S/N:
|
HOSE | - |
|
|
| 12 |
420103-00259
S/N: 1001 - 1523
|
HOSE,FUEL | - |
|
|
| 12 |
420103-00259B
S/N: 1524 ~
|
HOSE | - |
|
|
| 13 |
S0512266
S/N: 1524 ~
|
BOLT | 2 |
|
|
| 13 |
DS0025039
S/N: 1001 - 1523
|
BOLT;SET | 2 |
|
|
| 14 |
124-00209D6
S/N: 1001 - 1523
|
CLIP | 1 |
|
|
| 17 |
400909-00179
S/N: 1001 - 1523
|
PUMP,FEED | - |
|
|
| 18 |
S5000313
S/N: 1001 - 1523
|
WASHER | 2 |
|
|
| 19 |
S0504453
S/N: 1001 - 1523
|
BOLT | 2 |
|
|
| 20 |
120106-00596
S/N: 1001 - 1523
|
BOLT | 2 |
|
|
| 25 |
124-00209D1
S/N: 1001 - 1523
|
CLIP | 3 |
|
|
| 26 |
DS2117025
S/N: 1001 - 1523
|
HOSE | - |
|
|
| 28 |
DS2105101
S/N: 1001 - 1523
|
HOSE | - |
|
|
| 29 |
DS2105009
S/N: 1001 - 1523
|
HOSE | - |
|
|
| 30 |
S8470014
S/N: 1001 - 1028
|
CLAMP | 15 |
|
|
| 30 |
S8470014
S/N: 1029 ~
|
CLAMP | 14 |
|
|
| 31 |
420103-00273
S/N: 1029 ~
|
HOSE | - |
|
|
| 32 |
180102-00984
S/N: 1029 ~
|
FOAM | - |
|
|
| 34 |
110406-04539
S/N: 1012 ~
|
BRACKET | - |
|
|
| 34 |
110406-04367
S/N: 1001 - 1011
|
BRACKET | - |
|
|
| 35 |
310101-00035
S/N: 1001 - 1011
|
TIE,CABLE | 3 |
|
|
| 36 |
400403-00444A
S/N: 1469 ~
|
FILTER,FUEL PRE | - |
|
|
| 36 |
400403-00444
400403-00444A
S/N: 1001 - 1468
|
FILTER,FUEL PRE | - |
|
|
| 37 |
310101-00187
S/N: 1001 - 1011
|
TIE,CABLE | - |
|
|
| 37 |
310101-00187
S/N: 1012 ~
|
TIE,CABLE | - |
|
|
| 38 |
DS0026011
S/N: 1012 ~
|
BOLT | - |
|
|
| 39 |
S5010616
S/N: 1012 ~
|
WASHER | - |
|
|
| 40 |
S0512466
S/N: 1012 ~
|
BOLT | - |
|
|
| 41 |
420103-00272
S/N: 1012 ~
|
HOSE | - |
|
|
| 42 |
DS2809001
S/N: 1029 ~
|
CLIP | - |
|
|
| 43 |
120804-00076
S/N: 1524 ~
|
WASHER | 2 |
|
|
