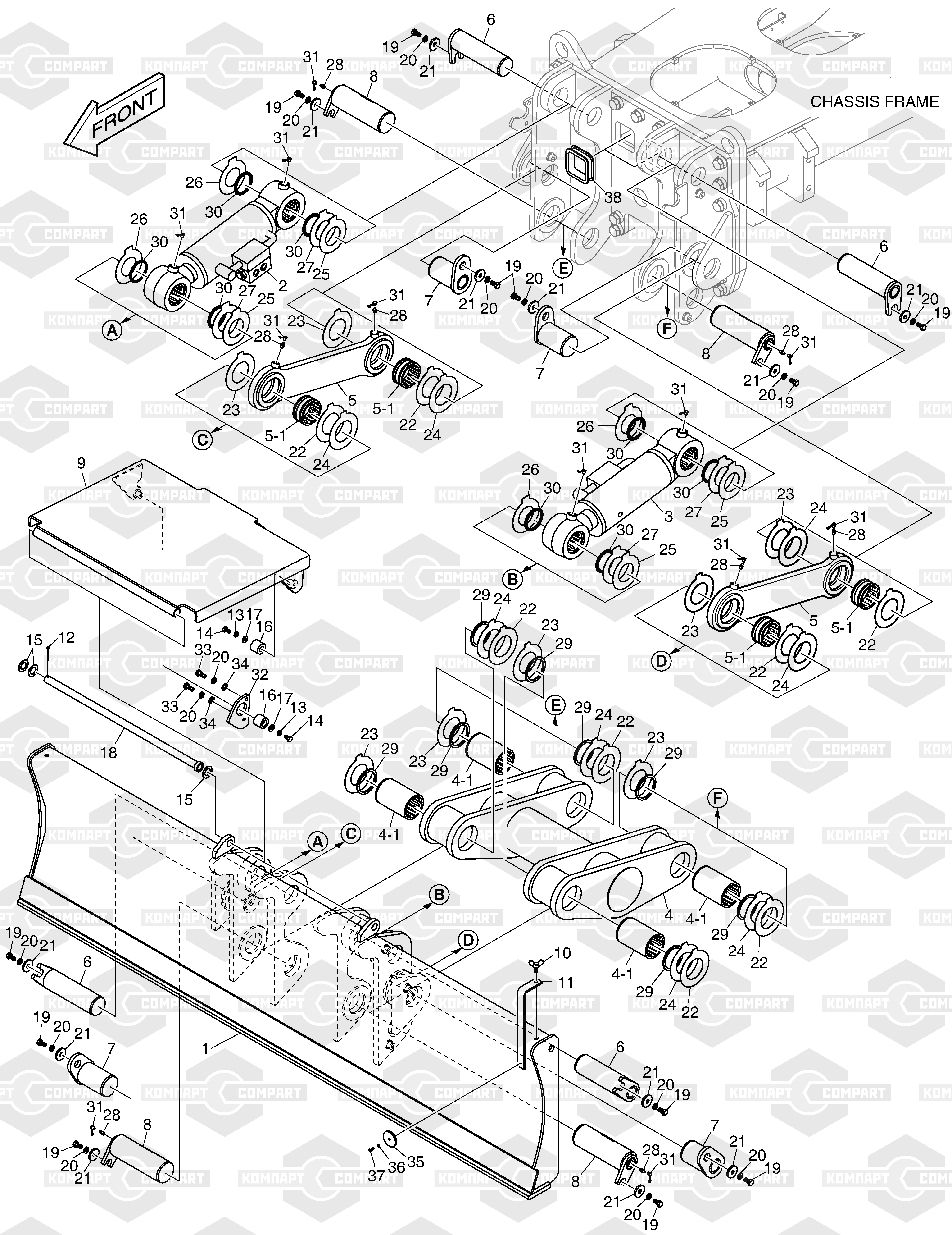

2 клика - переход в карточку товара, 1 клик - выбор запчасти на схеме
| Поз. | Кат. номер | Наименование | Кол. | Наличие | В запрос |
|---|---|---|---|---|---|
| - |
230102-00111
S/N:
|
BLADE ASSY,DOZER;FRONT | - |
|
|
| 1 |
230102-00046
S/N:
|
BLADE,DOZER | - |
|
|
| 2 |
400312-00013C
S/N:
|
CYLINDER,DOZER | - |
|
|
| 3 |
400312-00014C
S/N:
|
CYLINDER,DOZER | - |
|
|
| 4 |
101539-00305A
S/N:
|
LINK,H | - |
|
|
| 4-1 |
K1006525A
S/N:
|
BUSHING | 4 |
|
|
| 5 |
101539-00304
S/N:
|
LINK,I | - |
|
|
| 5-1 |
K1006526
S/N:
|
BUSH | 2 |
|
|
| 6 |
120501-00701A
S/N:
|
PIN | - |
|
|
| 7 |
120501-00702B
S/N: 1001 - 1018
|
PIN | - |
|
|
| 7 |
120501-04485
S/N: 1019 ~
|
PIN | - |
|
|
| 8 |
120501-00703A
S/N: 1019 ~
|
PIN | - |
|
|
| 9 |
110508-12881C
S/N: 1019 ~
|
COVER,DOZER CYLINDER | - |
|
|
| 10 |
S3051203
S/N: 1019 ~
|
BOLT,WING | - |
|
|
| 11 |
K1000813
S/N: 1019 ~
|
BRACKET | - |
|
|
| 12 |
S5735751
S/N: 1019 ~
|
PIN;SPLIT | - |
|
|
| 13 |
S5102603
S/N: 1019 ~
|
WASHER | 2 |
|
|
| 14 |
S0511866
S/N: 1019 ~
|
BOLT | 2 |
|
|
| 15 |
DS0401189
S/N: 1019 ~
|
WASHER | - |
|
|
| 16 |
K1043185
S/N: 1019 ~
|
RUBBER | - |
|
|
| 17 |
2114-1058D45
S/N: 1019 ~
|
WASHER | 2 |
|
|
| 18 |
120501-00707
S/N: 1019 ~
|
PIN | - |
|
|
| 19 |
S0515066
S/N: 1019 ~
|
BOLT | 12 |
|
|
| 20 |
S5102703
S/N: 1019 ~
|
WASHER | 14 |
|
|
| 21 |
4114-4078A
S/N: 1019 ~
|
WASHER | 12 |
|
|
| 22 |
DS7752012
S/N: 1019 ~
|
SHIM | 8 |
|
|
| 23 |
DS7752013
S/N: 1019 ~
|
SHIM | 8 |
|
|
| 24 |
DS7752078
S/N: 1019 ~
|
SHIM | 8 |
|
|
| 25 |
DS7752006
S/N: 1019 ~
|
SHIM | 4 |
|
|
| 26 |
DS7752007
S/N: 1019 ~
|
SHIM | 4 |
|
|
| 27 |
DS7752107
S/N: 1019 ~
|
SHIM 1.3mm | - |
|
|
| 28 |
S6710043
S/N: 1019 ~
|
NIPPLE | 8 |
|
|
| 29 |
2180-9055
S/N: 1001 - 1017
|
SEAL;DUST | 8 |
|
|
| 29 |
DS5501005
S/N: 1018 ~
|
SEAL,DUST | 8 |
|
|
| 30 |
DS5501009
S/N: 1018 ~
|
SEAL,DUST | 8 |
|
|
| 30 |
2180-1106BD4
S/N: 1001 - 1017
|
SEAL;DUST | 8 |
|
|
| 31 |
160-00020
S/N: 1001 - 1017
|
CAP | 12 |
|
|
| 32 |
250201-01407
S/N: 1001 - 1017
|
PLATE,LOCK;DOZER COVER | - |
|
|
| 33 |
S0515166
S/N: 1001 - 1017
|
BOLT | 2 |
|
|
| 34 |
S5010713
S/N: 1001 - 1017
|
WASHER;PLAIN | 2 |
|
|
| 35 |
K1002629
S/N: 1001 - 1017
|
REFLECTOR | - |
|
|
| 36 |
S5102203
S/N: 1001 - 1017
|
WASHER | 2 |
|
|
| 37 |
S3450853
S/N: 1001 - 1017
|
SCREW | 2 |
|
|
| 38 |
DS7604006
S/N: 1001 - 1017
|
GUIDE,RUBBER | - |
|
|
