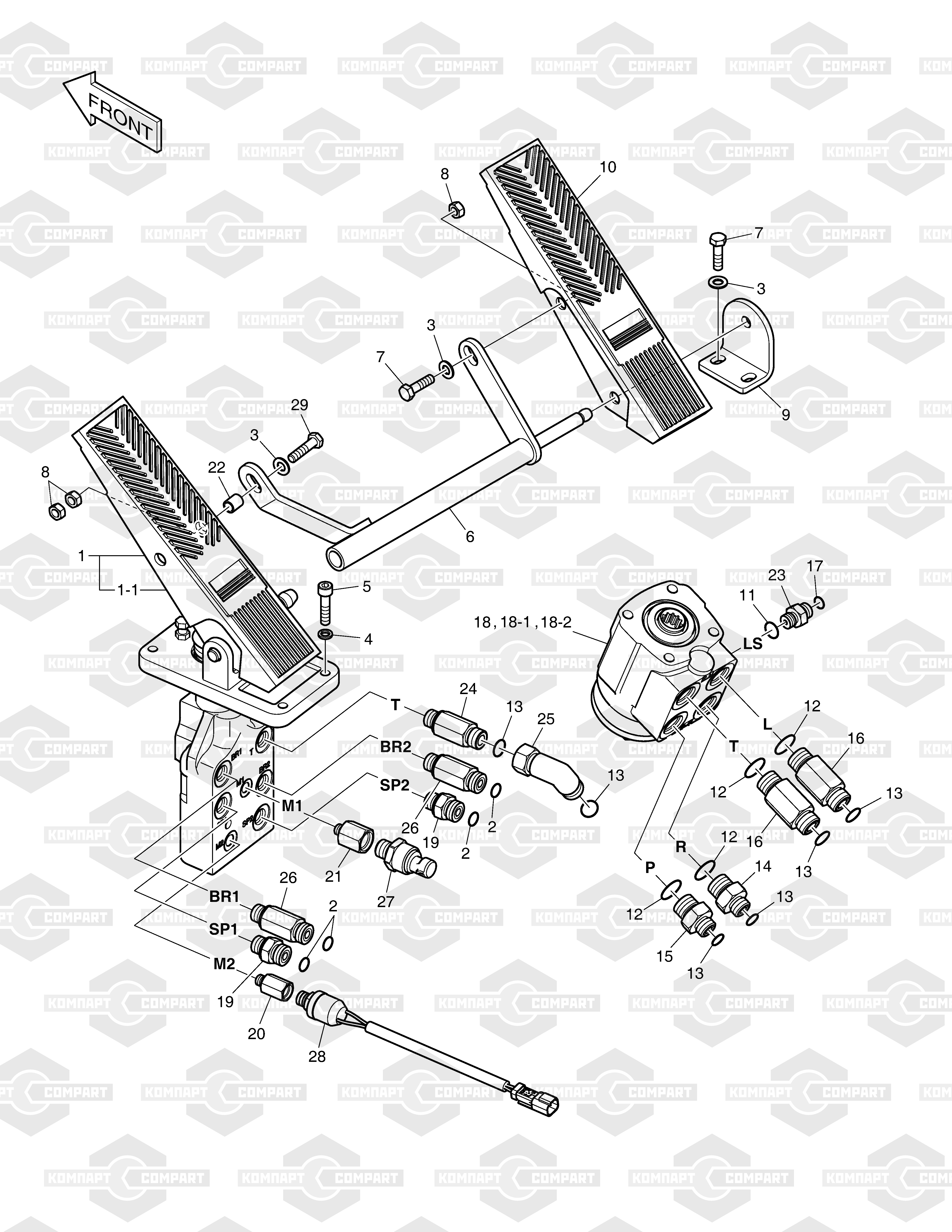

2 клика - переход в карточку товара, 1 клик - выбор запчасти на схеме
| Поз. | Кат. номер | Наименование | Кол. | Наличие | В запрос |
|---|---|---|---|---|---|
| - |
220101-00994G
S/N: 10001 - 10082
|
CABIN SUB ASSY | - |
|
|
| - |
220101-00994H
S/N: 10083 ~
|
CABIN SUB ASSY | - |
|
|
| 1 |
410119-00023
S/N: 10083 ~
|
VALVE ASSY,BRAKE PEDAL | - |
|
|
| 1-1 |
2.412-00327
S/N: 10083 ~
|
PLATE | - |
|
|
| 18-1 |
A215283
S/N: 10083 ~
|
SEAL KIT | 1 |
|
|
| 18-2 |
A215284
S/N: 10083 ~
|
BEARING KIT;NEEDLE | 1 |
|
|
| 2 |
S8030061
S/N: 10083 ~
|
O-RING | 4 |
|
|
| 3 |
S5010513
S/N: 10083 ~
|
WASHER | 4 |
|
|
| 4 |
S5110503
S/N: 10083 ~
|
WASHER | 4 |
|
|
| 5 |
S2209366
S/N: 10083 ~
|
BOLT | - |
|
|
| 6 |
120601-00044
S/N: 10083 ~
|
ROD,BRAKE | - |
|
|
| 7 |
S0555966
S/N: 10083 ~
|
BOLT | - |
|
|
| 8 |
S4012533
S/N: 10083 ~
|
NUT | 3 |
|
|
| 9 |
110420-00752
S/N: 10083 ~
|
BRACKET,MOUNTING | - |
|
|
| 10 |
134-00008
S/N: 10083 ~
|
PEDAL;BRAKE | 1 |
|
|
| 11 |
S8000111
S/N: 10083 ~
|
O-RING | 1 |
|
|
| 12 |
S8000181
S/N: 10083 ~
|
O-RING | 4 |
|
|
| 13 |
S8030081
S/N: 10083 ~
|
O-RING | 6 |
|
|
| 14 |
DS2232012
S/N: 10083 ~
|
ADAPTER | 1 |
|
|
| 15 |
DS2232136
S/N: 10083 ~
|
ADAPTER | - |
|
|
| 16 |
DS2232015
S/N: 10083 ~
|
ADAPTER | 2 |
|
|
| 17 |
S8030041
S/N: 10083 ~
|
O-RING | 1 |
|
|
| 18 |
190202-00147
S/N: 10083 ~
|
STEERING UNIT | 1 |
|
|
| 18 |
190202-00041
190202-00147
S/N: 10001 - 10082
|
STEERING UNIT | 1 |
|
|
| 19 |
DS2508001
S/N: 10001 - 10082
|
ADAPTER | 2 |
|
|
| 20 |
430201-00721
S/N: 10001 - 10082
|
ADAPTER | - |
|
|
| 21 |
430201-00720
S/N: 10001 - 10082
|
ADAPTER | - |
|
|
| 22 |
DS5201101
S/N: 10001 - 10082
|
SPACER | - |
|
|
| 23 |
DS2232018
S/N: 10001 - 10082
|
ADAPTER | 1 |
|
|
| 24 |
DS2508021
S/N: 10001 - 10082
|
ADAPTER | - |
|
|
| 25 |
DS2291011
S/N: 10001 - 10082
|
ELBOW | - |
|
|
| 26 |
DS2508023
S/N: 10001 - 10082
|
ADAPTER | - |
|
|
| 27 |
301309-00224
S/N: 10001 - 10082
|
SENSOR,OIL PRESSURE | - |
|
|
| 28 |
301413-00340
S/N: 10001 - 10082
|
SWITCH,OIL PRESSURE | 1 |
|
|
| 29 |
S0556066
S/N: 10001 - 10082
|
BOLT | - |
|
|
