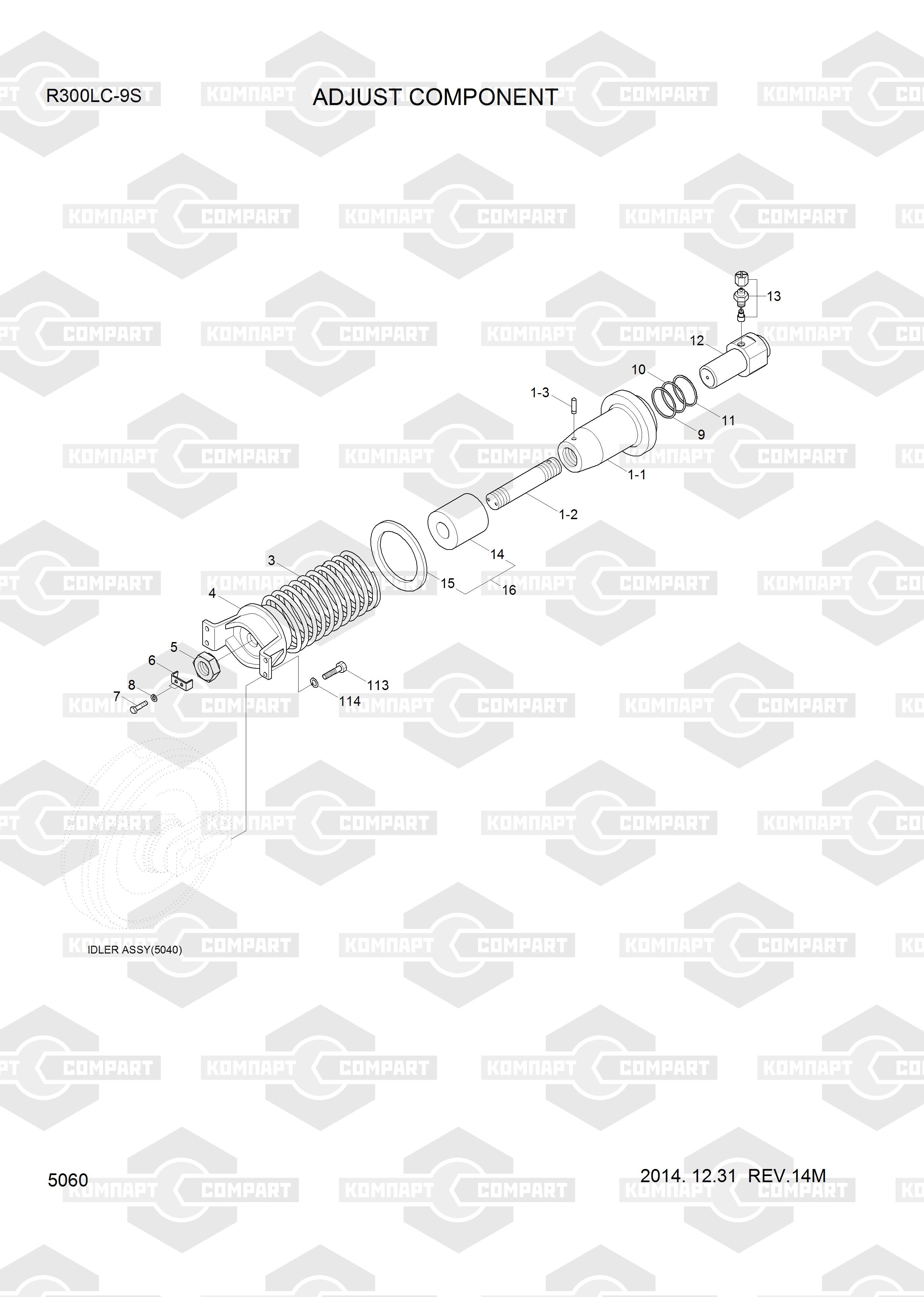

ADJUST COMPONENT ЭКСКАВАТОРА HYUNDAI R300LC-9S

2 клика - переход в карточку товара, 1 клик - выбор запчасти на схеме

Поз.	Кат. номер	Наименование	Кол.
*	81N8-15013GG S/N: ~ 0029	ADJUST COMPONENT	2
*	81N8-15014GG S/N: 0030 - 0275	ADJUST COMPONENT	-
*	81N8-15014GG S/N: 0030 - 0275	ADJUST COMPONENT	-
*	81Q8-15050 S/N: 1731 ~	ADJUST COMPONENT	-
*	81N8-15019GG S/N: 1551 - 1730	ADJUST COMPONENT	2
*	81N8-15018GG S/N: 1339 - 1550	ADJUST COMPONENT	2
*	81N8-15017GG S/N: 0794 - 1338	ADJUST COMPONENT	2
*	81N8-15016GG S/N: 0622 - 0793	ADJUST COMPONENT	-
*	81N8-15015GG S/N: 0276 - 0621	ADJUST COMPONENT	2
*	81N8-15013GG S/N: ~ 0029	ADJUST COMPONENT	2
*	81Q8-15051 S/N: 1822 ~	ADJUST COMPONENT	-
*	81Q8-15050 S/N: 1731 - 1821	ADJUST COMPONENT	-
*	81N8-15019GG S/N: 1551 - 1730	ADJUST COMPONENT	2
*	81N8-15018GG S/N: 1339 - 1550	ADJUST COMPONENT	2
*	81N8-15017GG S/N: 0794 - 1338	ADJUST COMPONENT	2
*	81N8-15016GG S/N: 0622 - 0793	ADJUST COMPONENT	-
*	81N8-15015GG S/N: 0276 - 0621	ADJUST COMPONENT	2
*-1	81N8-14016GG S/N: 0622 - 1338	T/CYLINDER ASSY	1
*-1	81Q8-14010 S/N: 1731 ~	T/CYLINDER ASSY	-
*-1	81Q8-14011 S/N: 1822 ~	TENSION CYLINDER ASSY	1
*-1	81Q8-14010 S/N: 1731 - 1821	TENSION CYLINDER ASSY	-
*-1	81N8-14018GG S/N: 1551 - 1730	T/CYLINDER ASSY	-
*-1	81N8-14017GG S/N: 1339 - 1550	T/CYLINDER ASSY	-
*-1	81N8-14014GG S/N: 0030 - 0275	TENSION CYLINDER ASSY	1
*-1	81N8-14018GG S/N: 1551 - 1730	TENSION CYLINDER ASSY	-
*-1	81N8-14017GG S/N: 1339 - 1550	TENSION CYLINDER ASSY	-
*-1	81N8-14016GG S/N: 0622 - 1338	TENSION CYLINDER ASSY	1
*-1	81N8-14015GG S/N: 0276 - 0621	TENSION CYLINDER ASSY	1
*-1	81N8-14015GG S/N: 0276 - 0621	T/CYLINDER ASSY	1
*-1	81N8-14014GG S/N: 0030 - 0275	T/CYLINDER ASSY	1
*-1	81N8-14013BG S/N: ~ 0029	T/CYLINDER ASSY	1
*-2	@ S/N: ~ 0029	IDLER ASSY	-
*-2	@ S/N: ~ 0029	IDLER ASSY	-
1	81N8-14300 S/N: ~ 0029	BODY ASSY	1
1	81N8-14302 S/N: 0030 - 0275	BODY ASSY	-
1	81N8-14303 S/N: 0276 ~	BODY ASSY	1
1-1	81N8-14100 S/N: ~ 0029	BODY	1
1-1	81N8-14102 S/N: 0030 - 0275	BODY	-
1-1	81N8-14103 S/N: 0276 ~	BODY	1
1-2	81N8-14112 S/N: 0276 ~	BAR-TIE	1
1-2	81N8-14111 S/N: 0030 - 0275	BAR-TIE	1
1-2	81N8-14110 S/N: ~ 0029	BAR-TIE	-
1-3	81N8-14290 S/N: ~ 0029	PIN-SPRING	1
3	81N8-14121 S/N: 0276 - 1338	SPRING	1
3	81N8-14122 S/N: 1339 - 1730	SPRING	-
3	81Q8-14400 S/N: 1731 ~	SPRING+TUBE	-
3	81N8-14120 S/N: ~ 0275	SPRING	1
4	81N8-14131 S/N: 0622 - 1338	BRACKET-T/CYL	1
4	81N8-14132 S/N: 1339 ~	BRACKET	1
4	81N8-14132 S/N: 0030 - 0621	BRACKET	1
4	81N8-14131 S/N: ~ 0029	BRACKET-T/CYL	1
5	81E9-20153 S/N: 0276 ~	NUT-LOCK	1
5	81E9-20151 S/N: ~ 0029	NUT-LOCK	-
5	81E9-20152 S/N: 0030 - 0275	NUT-LOCK	-
6	81E9-20161 S/N: 0030 - 0621	PLATE-LOCK	1
6	81E9-20160 S/N: ~ 0029	PLATE-LOCK	1
6	81E9-20160 S/N: 0622 - 1338	PLATE-LOCK	1
6	81E9-20161 S/N: 1339 ~	PLATE-LOCK	1
7	S018-120306 S/N: 1339 ~	BOLT-HEX	2
8	S411-120006 S/N: 1339 ~	WASHER-SPRING	2
9	81E1-3104 S/N: 1339 ~	SEAL-ROD	1
10	81E1-3204 S/N: 1339 ~	RING-BACK UP	1
11	81E1-3304 S/N: 1339 ~	SEAL-DUST	1
12	81N8-14211 S/N: 1339 ~	ROD	1
13	81Q6-14241 S/N: 1551 - 1821	VALVE-GREASE	1
13	81Q6-14241 S/N: 1551 ~	VALVE-GREASE	1
13	81Q6-14240 S/N: 0622 - 1550	VALVE-GREASE	1
13	81N6-14240 S/N: 0002 - 0621	VALVE-GREASE	1
13	81Q6-14242 S/N: 1822 ~	VALVE-GREASE	1
13	81Q6-14240 S/N: 0622 - 1550	VALVE-GREASE	1
13	81N6-14240 S/N: 0002 - 0621	VALVE-GREASE	1
13	E181-2013 S/N: ~ 0001	VALVE-GREASE	1
14	81N8-14272 S/N: 1339 ~	TUBE-STOPPER	-
14	81N8-14271 S/N: 0030 - 1338	TUBE	1
14	81N8-14270 S/N: ~ 0029	TUBE	-
15	81QA-14280 S/N: 1551 ~	SPACER	-
16	S411-160006 S/N: 1551 ~	WASHER-SPRING	4
16	81Q9-14290 S/N: 1551 ~	STOPPER KIT	-
113	S018-16050D S/N: 1551 ~	BOLT-HEX	4
114	S411-160006 S/N: 1551 ~	WASHER-SPRING	4
